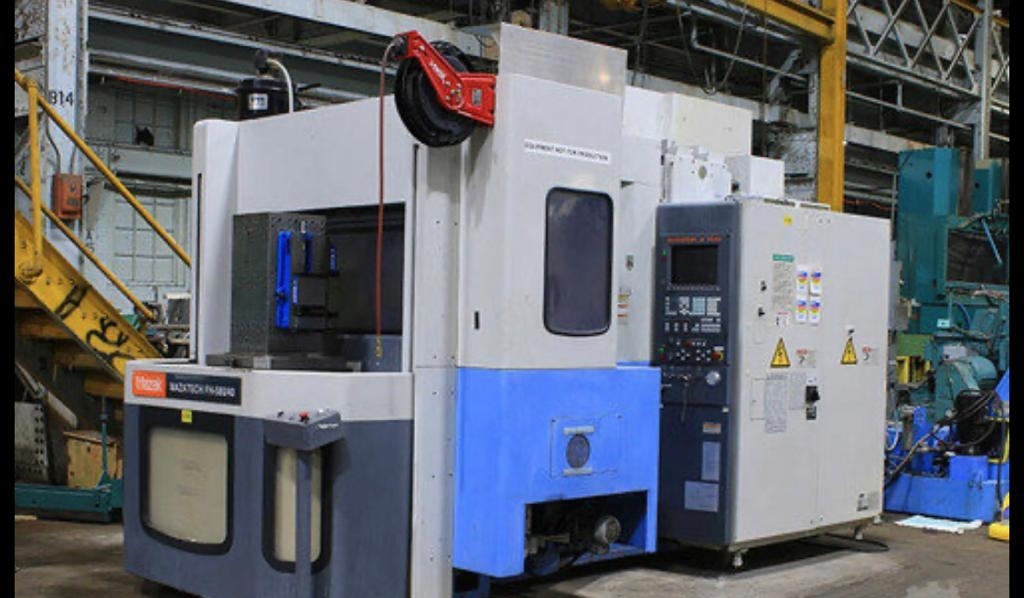

HMC MAZAK MODEL: FH 580/40 MFG: 1998
MAZAK 4-AXIS HORIZONTAL CNC MACHINING CENTER
MODEL: FH 580/40, S/N: 134331, MFG: 1998
SPECIFICATIONS:
PALLET SIZE ............................... 19.68" X 19.68"
AXIS TRAVELS:
X - Axis ............................... 27.95"
Y - Axis ............................... 24.02"
Z - Axis ............................... 25.98"
TABLE INDEXING ............................ .001 DEGREE
SPINDLE CENTER TO TABLE TOP ............... 1.96" - 25.98"
SPINDLE NOSE TO TABLE CENTER .............. 5.91" - 31.89"
SPINDLE TAPER ............................. #40 CAT
SPINDLE SPEED RANGE ....................... 12,000 RPM
Rapid Traverse Rate 1300 IPM X,Y,Z
AUTO TOOL CHANGE CAPACITY ................. 60 ATC
APPRXIMATE MACHINE WEIGHT ................. 23373 LBS
EQUIPPED WITH:
MAZATROL M-PLUS 4 AXIS CNC CONVERSATIONAL CONTROL
TWO PALLETS
60 POSTION AUTOMTIC TOOL CHANGER
TWO SPEED GEAR BOX
CHIP CONVEYOR
NEW DAIKIN SPINDLE CHILLER
COOLANT SYSTEM
30 HORSE POWER SPINDLE MOTOR
