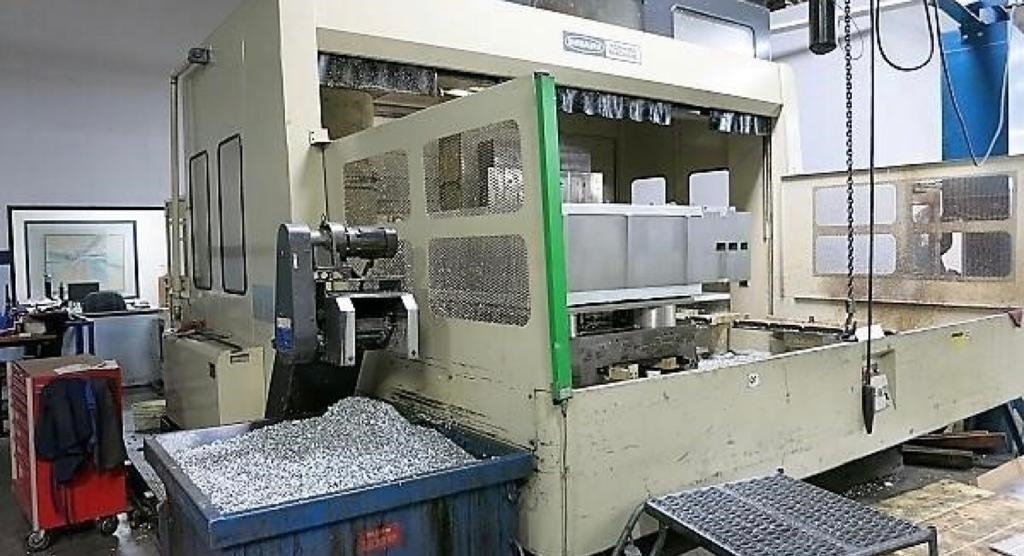

HMC TOSHIBA 1000 Model: BMC 100E

Toshiba Model: BMC 100E Year: 1995 39.4” X 39.4” Pallet Size (2) Pallets - 4,400 Maximum Pallet Load 2.95” – 52.2” Spindle Center To Pallet Top 7.87” – 53.1” Spindle Nose To Pallet Center 63” X-Axis Travel 49.2” Y-Axis Travel 47.2” Z-Axis Travel .001 Degree B-Axis Contouring 15 – 5,000 RPM Spindle Speed 40/30 HP Spindle Motor CAT 50 Spindle Taper 60 Stations Automatic Tool Changer 44 Lb. Maximum Tool Weight Machine Weight: 55,000 Lbs. Very Good Condition And Under Power Using Mostly Aluminum. Complete With Tosnuc 888 CNC Control Rigid Tapping (Synchronous/Solid Tapping), 230 PSI Coolant Thru Spindle, Spindle Chiller (Spindle Oil Cooling System), Chip Conveyor, Remote Hog Hand Wheel, Standard Coolant System With Tank & Pump Fully Enclosed Guards And All Available Manuals.
